TUV Electrical 3 Way Tube 250VAC PA66 Waterproof Connectors

Product Categories

Shenzhen Realeader Industrial Co., Ltd.

Contact Now

Name: TUV Electrical 3 Way Tube 250VAC PA66 Waterproof Connectors
Brand: Realeader
Price: 1 USD

Brand Name : Realeader

Model Number : RLDS20(Y)-W01

Certification : UL/CE/CQC

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : Western Union, T/T,, MoneyGram,Paypal,, L/C

Supply Ability : 100000pcs/month

Packaging Details : cartons

Product Name : IP68 Waterproof Connector

Rated Voltage : 250V AC

Contact Cores : 2pin/3pin/4pin/5pin

Protect Level : IP68

Gender : Female

Keywords : waterproof connector

Contact Now

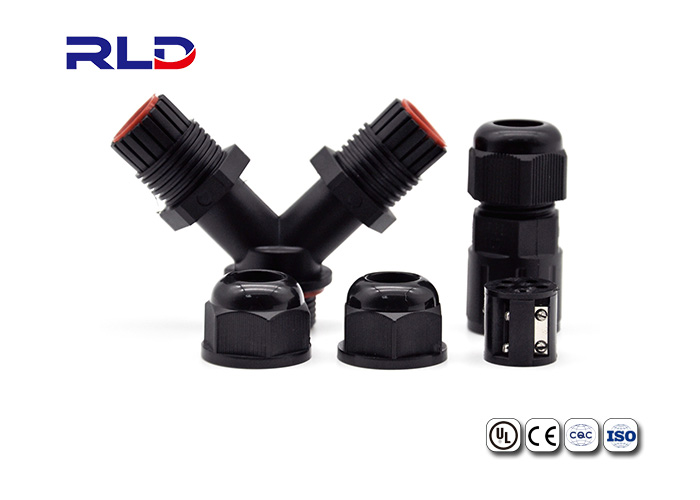

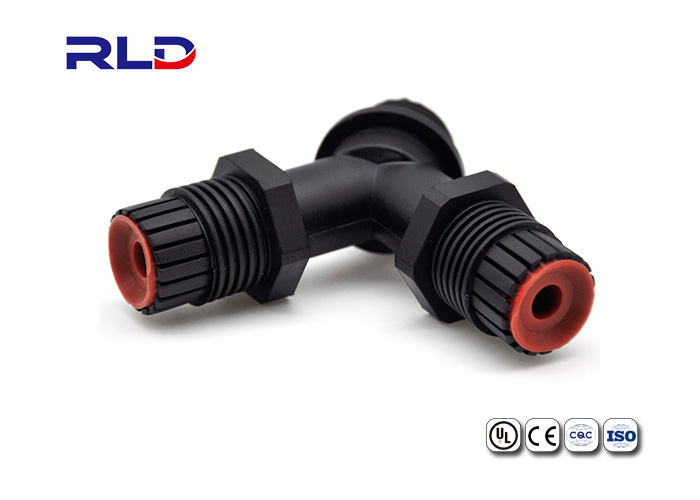

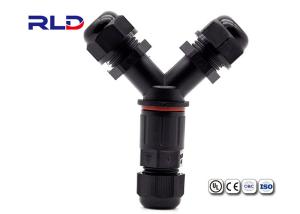

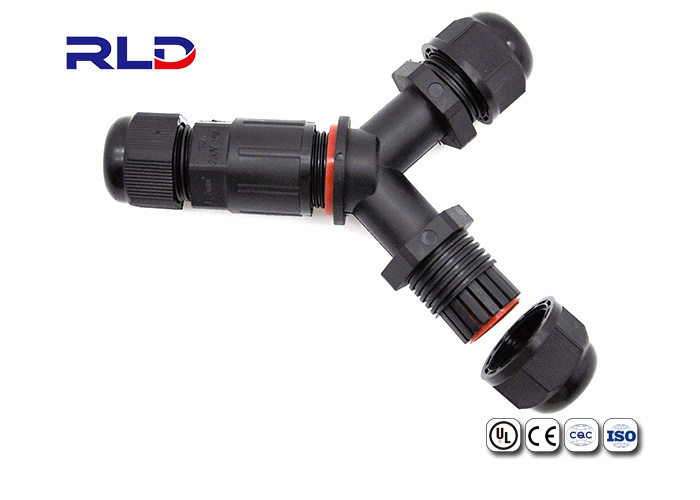

TUV Electrical 3 Way Tube 250VAC PA66 Waterproof Connectors

Product Name	Y connector
Contact Cores	2/3/4/5Pin
Waterproof Level	IP68
Rated Voltage	250V AC
Wire Diameter	0.5-1.5mm2
Rated Current	16A
OD	≤6.5,≤10,≤12
Material - ROHS	Environmental Protection material
Cable Type	PVC , Silicon , Rubber
Housing Material	Flame retardanr / Anti nylon PA66
Crimping Terminals	Nickle-Plated Brass

Housing:PA66

Metal part:brass

Waterproof O-ring: silicone

Rated voltage:250V

Rated current:16A

Cable range: 0.5-2.5mm2

Cable OD:6.5-12mm
Operating remperature range: -40°C~+85°C
Waterproof rate:IP68
Fire classification:94V0

Our Advantages

1. Customized Waterproof Connectors : For all connectors we provide OEM & ODM service.

2. Fast Delivery : 1-3 working day for sample ; 5-7 working days for bulk order.

3. Factory direct support : Realeader foucs on Waterproof Connectors for over 13years.

Application

TUV Electrical 3 Way Tube 250VAC PA66 Waterproof Connectors
