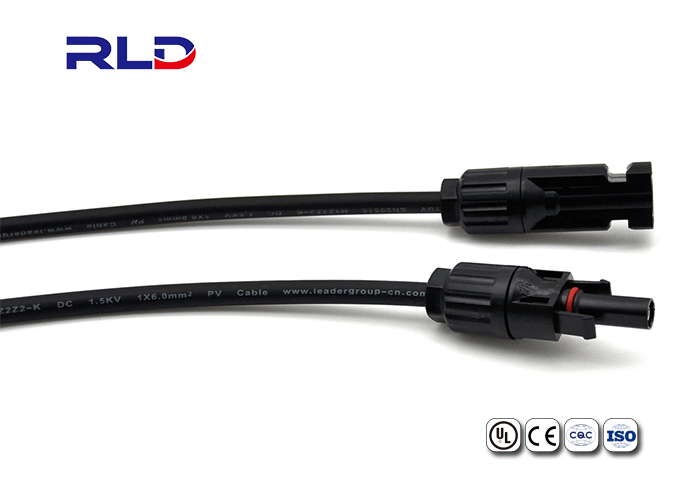

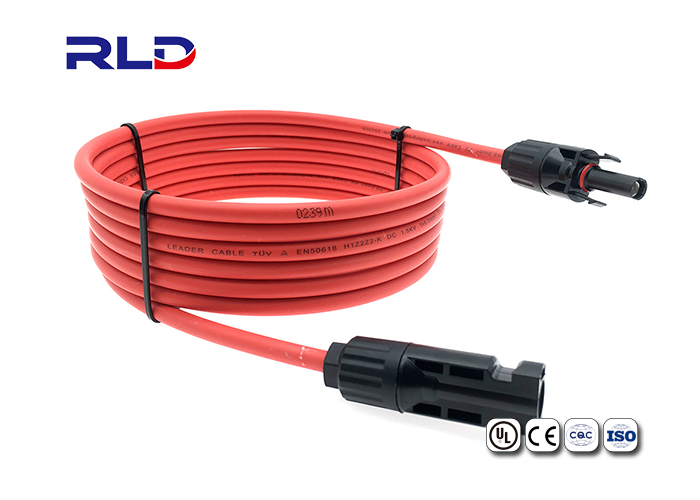

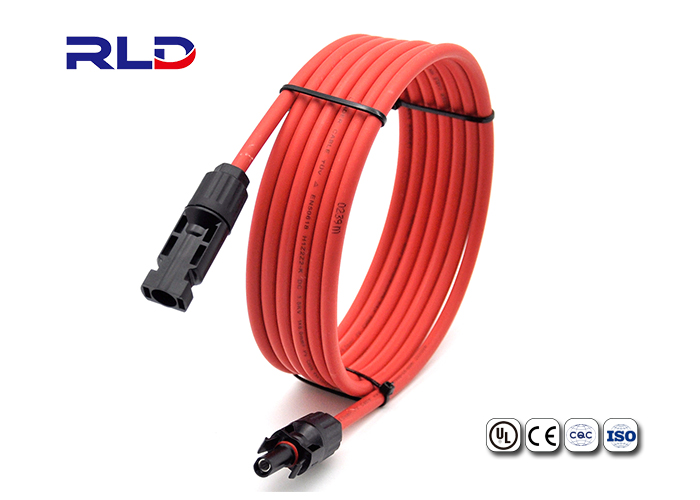

Ip67 30A 1000V Waterproof Cable Connector For PV Cable Solar Panel

Name: Ip67 30A 1000V Waterproof Cable Connector For PV Cable Solar Panel
Brand: Realeader
Price: 1 USD

China Ip67 30A 1000V Waterproof Cable Connector For PV Cable Solar Panel wholesale

Brand Name : Realeader

Model Number : DR-S01

Certification : UL/CE/CQC

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : Western Union, T/T,, MoneyGram,Paypal,, L/C

Supply Ability : 100000pcs/month

Packaging Details : cartons

Product Name : Solar Panel Connector

Contact Cores : 2PIN

IP Level : ip67

Gender : Male + Female

Color : Black

Application : Solar System

Contact Now

Ip67 30A 1000V Waterproof Cable Connector For PV Cable Solar Panel

Quick Detail Of Solar Panel Connector

Simple on-site processing
Mating safety provided by keyed housings
Multiple plugging and unplugging cycles
Accomodates PV cables with different insulation diameters
High current carrying capacity
CE TUV and ISO approved

Solar Panel connector is a connecting device for connecting solar panel circuits. It can connect various groups of circuits safely
and quickly. It is dustproof, waterproof, anti-aging, UV resistant, light and easy to use, easy to install, safe and long-lasting.
Life and other characteristics.
The solar panel connector is self-locking and consists of the following components:
1) Connector plastic body: the material used is PPO
2) Waterproof colloid: the material used is silica gel
3) Contact conductor: the material used is copper tin

Technical Data of Solar Panel Connector

Product Name	Solar Panel Connector
Rated Current	50A (2.5-6mm²)
Degree of Protection	IP68
Rated Voltage	1500V/1000V DC
Flame Class	UL94-V0
Test Voltage	6000V (50Hz,1min)
Safety Class	II
Overvoltage Category	CATIII

Suitable Class	OD4.5-8.5 (2.5-6.0mm²)
Contact Resistance	<0.5mΩ/km
Insertion Force / Withdrawal Force	≤50N/≥50N
Contact Material	Copper (Class5, Tin Plated)
Connecting System	Crimp Connection
Insulation Material	PPO
Temperature Range	-40℃ ~ +85℃

Application of Waterproof Cable Connectors

Ip67 30A 1000V Waterproof Cable Connector For PV Cable Solar Panel
